Clarifier

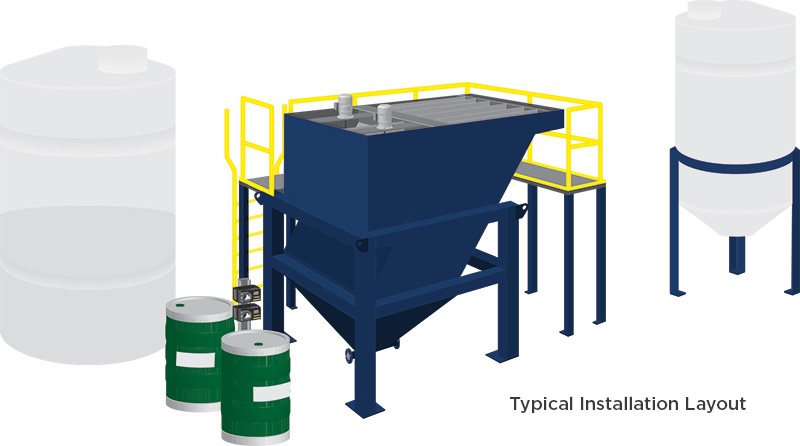

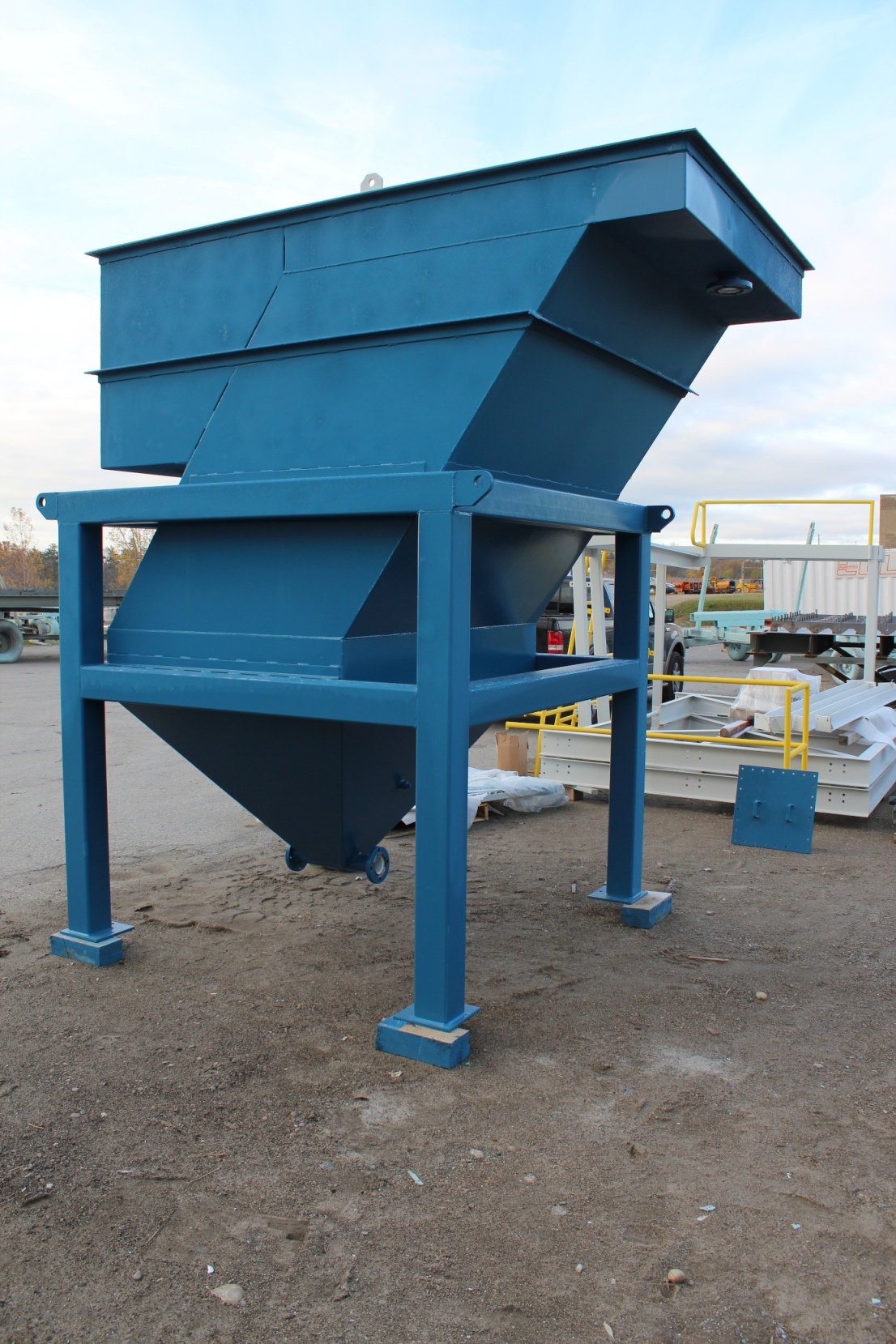

The WESCOR clarifier utilizes inclined plate technology for efficient solid/liquid separation. The inclined plate design permits increased throughput while occupying a minimal footprint.
Standard:
a
Epoxy coated, mild steel construction

b
Integrated flash & floc tanks with agitator(s)


c
Operator platform

d
PVC plate pack with removable plates


e
Control system

Operation Details

Wastewater clarification relies on gravity separation characteristics of suspended matter within the wastestream. Solids suitable for separation using a clarifier must be of a settle-able nature. The clarification process promotes solids to settle to the sludge collection chamber at the bottom of the tank, allowing clear effluent to decant from the top of the clarification tank.

The WESCOR clarifier utilizes inclined plate technology for efficient solid/liquid separation. The inclined plate clarifier design permits increased wastewater throughput while occupying a minimum equipment footprint.

Wastewater enters the clarifier by means of pump, or gravity flow. When necessary, wastewater is chemically pre-conditioned in the integrated flash & floc mix tanks to maximize floc size & settling characteristics. Conditioned wastewater then flows into the centre portion of the clarifier plate tank. Flow is distributed across the bottom of the plate pack in a quiescent manner to initiate the settling process. As the wastestream moves upwards through the plate tank, flocculated solids settle onto the plates, and then fall by gravity along the surface of the inclined plate to be collected in the lower sludge chamber. Solids collected in the sludge chamber are removed by pump through-out the operation at intervals determined by the control system. Clarified water flows out the effluent weir at the top of the plate tank.

Typical Applications

Metal Plating

Phosphating / Metal Preparation

Vehicle Wash

Oil Production

Painting / Latex

E-Coat

Filter Backwash

Solids removal following biological treatment processes
